TDS endpoint for custom development and data integrations?

By | June 17, 2020

TDS endpoint availability is, probably, one of the coolest technical capabilities introduced by Microsoft in the last few months. However, even though it’s great to be able to run SQL queries in the SQL management studio as described in Microsoft docs:

https://docs.microsoft.com/en-us/powerapps/developer/common-data-service/cds-sql-query

There are other usage scenarios which seem to be very enticing.

Using it for data reporting would be one option:

https://crmchartguy.com/2020/05/29/directquery-cds-from-power-bi/

There are at least a couple of others, though.

1. We can use TDS endpoint when developing custom applications that need access to CDS

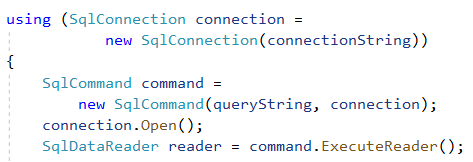

For example, I have updated my angular portal template to utilize TDS endpoint when reading cases/notes from CDS. How difficult was it? It was not, at all:


Sure this change meant a bit of code refactoring; however, converting from the entity-base syntax to the sql data reader syntax is very straightforward.

What are the benefits?

  • Well, SQL has always been easier for me to understand than FetchXML or QueryExpressions
  • In terms of specifying query conditions, SQL is definitely more advanced
  • Finally, and I’m not sure it will stay this way(but, on the other hand, I am not sure if it’s technically possible to change this), I have a feeling TDS connection will bypass API limits

Of course the last item on the list above is only applicable to the “read” requests, since TDS endpoint only provides read access at this time. But, come to think of it, “read” operation is what the portal will be doing most of the times. The remaining (“Create”/“Update”/”Delete”) ones will still be done through the SDK.

If you are wondering about the connection string for the SqlConnection, here is how it looks like:

Server=<orgname>.crm3.dynamics.com,5558;Authentication=Active Directory Password;Database=<orgname>.com;User Id=<user name(email address)>;Password=<password>;

2. Data migrations with SSIS

  • Do you want to use a tool, such as SSIS, to extract data from CDS? Of course KingswaySoft connector has become a de-facto standard for CDS integrations through SSIS, but TDS endpoint availability opens up some nice opportunities.

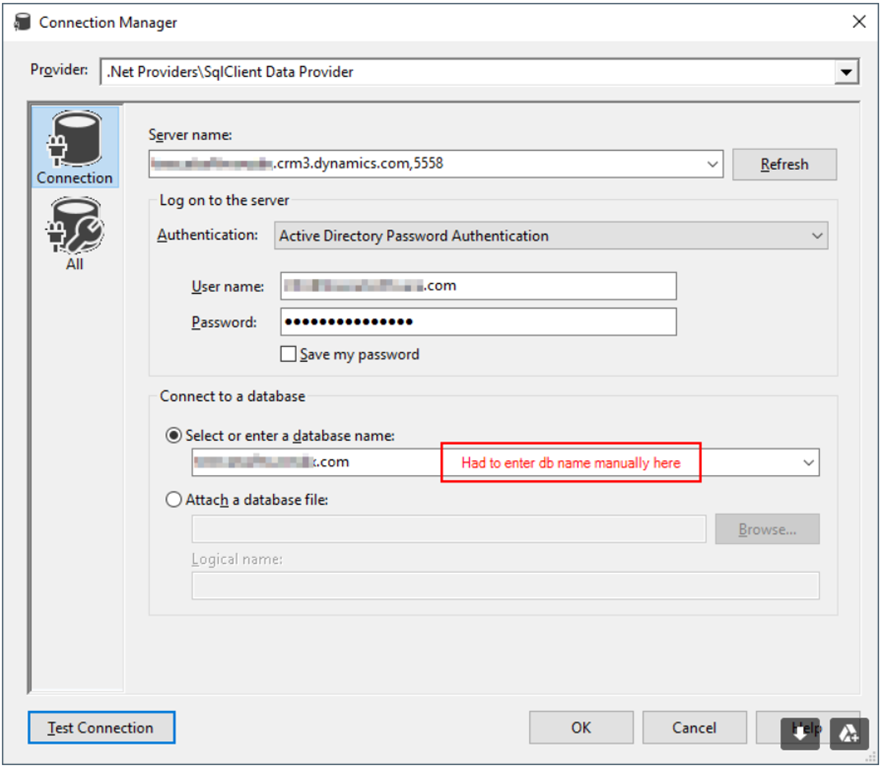

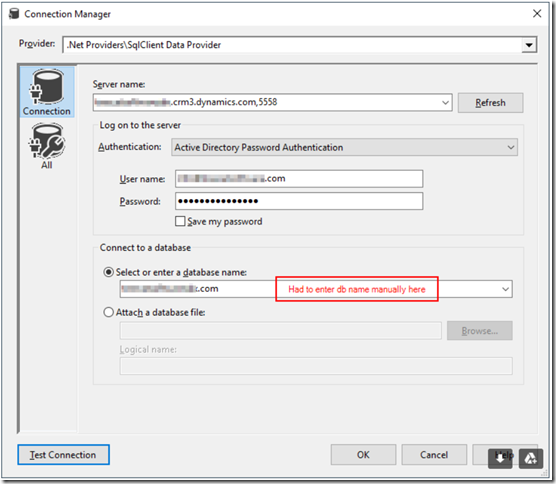

You just need to create an ADO connection:

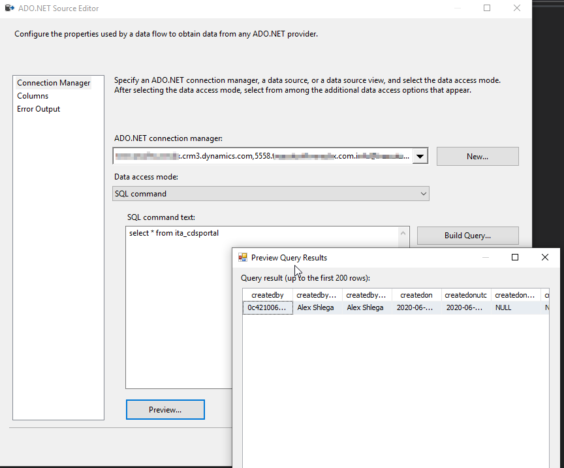

And use ado data source after that:

Just keep in mind that TDS endpoint seems to be having troubles getting the metadata that way, so I had to specify the database name manually, and, also, had to use a SQL command option since none of the table names were visible. Maybe I just missed a setting somewhere, but, even so, it’s a already working as you can see in the “preview” window on the screenshot above.

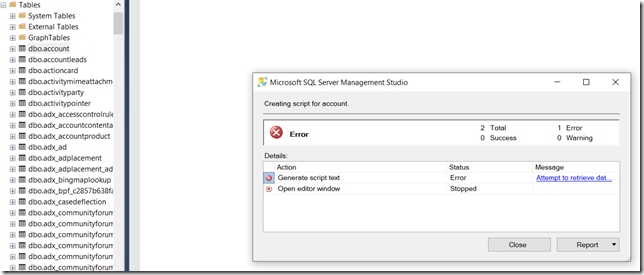

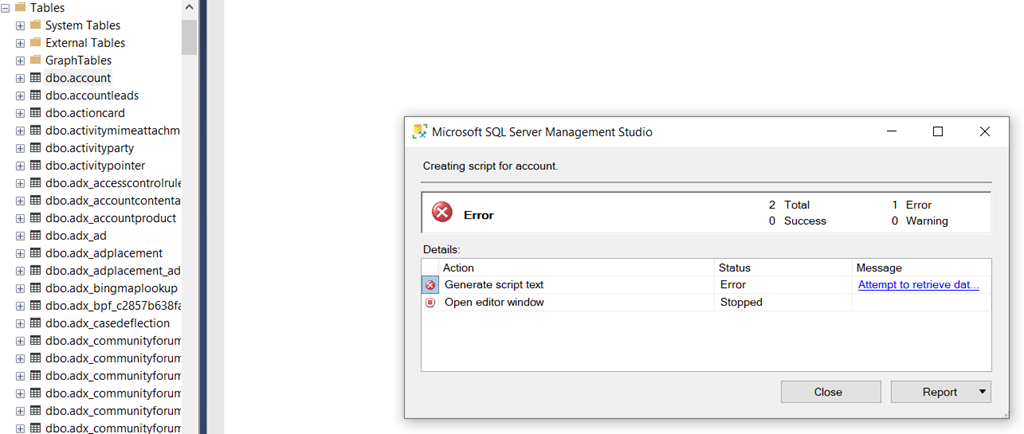

As far as metadata goes, and that’s just a note so we don’t get too carried away, there are definitely some limitations. For example, my attempt to generate a “create” script for the account table failed miserably:


Not that I need it too much, just wanted to quickly create a table in my local database for the SSIS script aboveSmile

5 thoughts on “TDS endpoint for custom development and data integrations?

  1. Stuart

    Very good article. Do you think its possible to add a CDS endpoint as a linked server so that you can use stored procedures to query data with advanced logic?

    Reply
  2. Dave Carr

    Stuart, I tried, and was not able to do anything other than T-SQL read-only queries, in the database reached by the TDS endpoint. I couldn’t save a stored procedure, and I could not create a linked server against it. So, still need to replicate data to Azure to do any complex T-SQL against the CDS.

    Reply
  3. Michael Cai

    Hey mate,

    Is using the TDS endpoint in SSIS to warehouse CRM data still not a option? I’m looking to move some CRM data into our own SQL server and was hoping it was possible with the endpoint but looking at the comments it seems it’s still not possible.

    Reply
    1. Alex Shlega Post author

      I’m not sure – have not tried (would think if SQL management studio can connect, then SSIS should be able, too. But, even if it works, it would be readonly access)

      Reply
  4. Vic

    Hi,

    I have difficulties creating the ADO.Net connection to Dynamics CRM in SSIS. I”m certain the TDS endpoint is enabled as I can connect to it from SSMS. I’ve installed the latest version of SSDT in both VS 2017 and 2019, but still cannot connect. I’ve tried 2 different CRM instances, no success in either of them.

    Any idea what could be wrong or how to troubleshoot? I see some people in the comments were successful in connecting.

    Regards,
    Vic

    Reply
